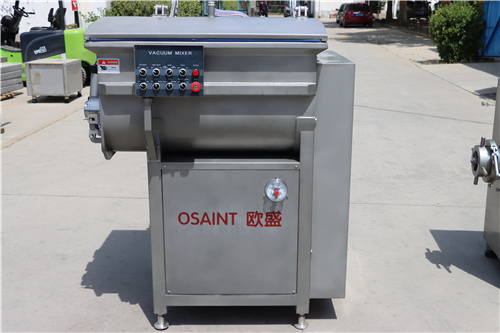

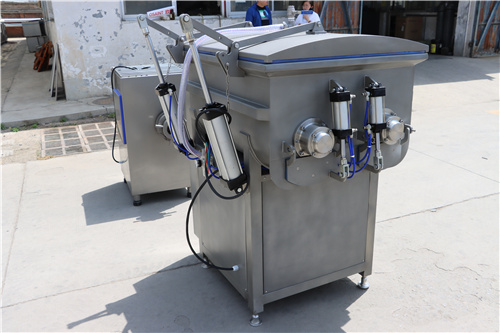

真空拌馅机300/500/750
真空搅拌机是我公司参照国际先进同类产品，并结合我国肉制品加工工艺特点，自行研制开发的。通过合理的设计，使物料搅拌均匀、充分膨胀、无气泡、弹性好、色泽鲜艳并更大限度的提取了蛋白质，是同类产品中的设备。
1. 整机采用304不锈钢材料制作，坚固耐用，容易清洗。
2. 可设置真空度，真空效果好，可使物料在真空状态下搅拌。
3. 采用平衡双轴螺旋结构。装有斜板桨叶及螺旋推进搅拌圈，搅拌均匀。
4. 采用可编程控制器和触摸屏控制，设定搅拌总时间，间歇时间及搅拌程序。
型号 | 搅拌箱容积 (L) | 功率(kw) | 搅拌轴转速(rpm) | 外形尺寸(mm) | 重量(kg) |
ZBH-300 | 300 | 4.95 | 40 | 1400×900×1400 | 400 |
ZBH-500 | 500 | 6.55 | 40 | 1500×1100×1500 | 650 |
ZBH-750 | 750 | 7.1 | 40 | 1880×1060×1530 | 1300 |
ZBH-300/500/750 VACUUM MIXER
Boan vacuum mixers mix the meat with other additives in absence of air , this can improve the retention of the color ,smell and taste ,reduce the time of
The next processing and ensure longer shelf life .
Elf-supported body made of high quality stainless steel , reliable and robust ,meet high hygienic standard .
Xcellent vacuum performance for optimal mixing results .vacuum can be
Preset as required .
Pecial paddle structure achieves an efficient and energetic mixing without any damage to the products, all the stuffs are pushed through the
Spiral boost devices which ensure uniform mixing results
Lector-mechanical or PLC control system can be selected .PLC control is
Via touch screen .Total mixing time ,interval time and various mixing type can be preset.
Model | Capacity of the material box (L) | Power(kw) | Mix speed(rpm) | Dimension(mm) | Weight(kg) |
ZBH-300 | 300 | 4.95 | 40 | 1400×900×1400 | 400 |
ZBH-500 | 500 | 6.55 | 40 | 1500×1100×1500 | 650 |
ZBH-750 | 750 | 7.1 | 40 | 1880×1060×1530 | 1300 |
